Friction Flow
Friction FlowTM solutions are designed to maximize the performance of each component in addition to achieving efficient liquid delivery for seeder bars.
Filters
14 products
FRICTION FLOW™
Friction Flow™ Liquid Injection

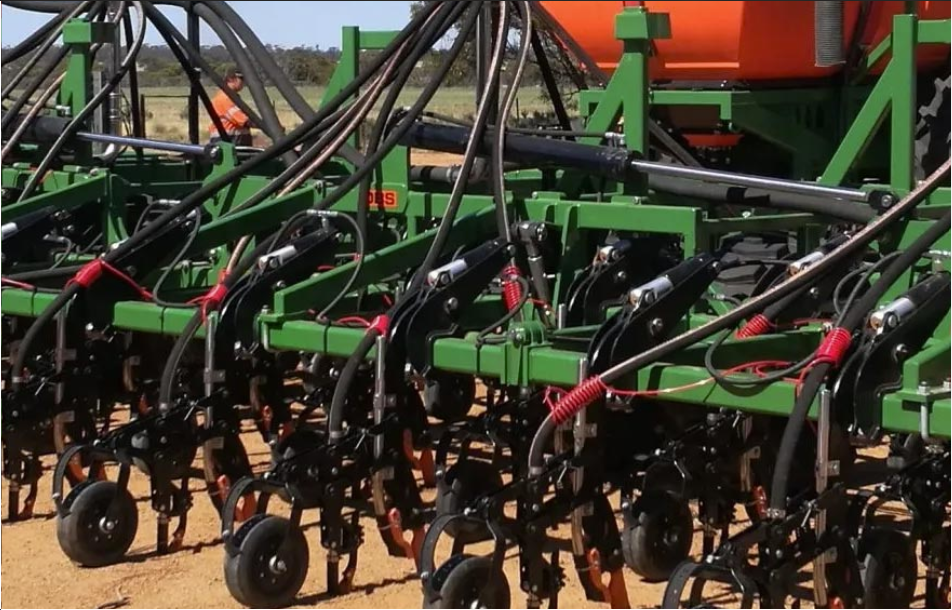

The signature Friction Flow™ back end systems and components are designed to furrow inject liquid fertiliser, trace elements, inoculants, fungicides, soil wetters and other fluid products at seeding time.
Flexibility
- Compact design to fit any model liquid cart
- Compatible with most Liquid control systems
- Modular and Serviceable for exceptional value and longevity
Quality
- Pinlock fittings with Viton seals to avoid thread or clamp leaks
- Precision ARAG valves and componentry with proven and reliability
- Accurate, trouble-free liquid application
Tubing
- Available in a range of sizes and “Suzi-Coil” configuration.
- Three internal diameter sizes, allowing the right rate ranges.
- Compatible with all market leading liquids
FAQ
What is Friction Flow?
Rather than a small restriction point, like an orifice plate or in line restrictor, Friction Flow uses larger internal diameter tubing over a distance to create an accurate and even metering system. Friction Flow is manufactured from the highest grade nylon for its chemical resistance, UV stability, and its wall strength to prevent kinking, crushing or internal distortion.
What Stops Friction Flow from blocking?
Larger internal diameter and faster flow of liquid through smaller delivery lines to secondary delivery manifolds minimises the chances of blocking when using more complicated liquid combinations.
What size does Friction Flow come in?
Friction Flow comes in three standard sizes internally; 1.2mm, 1.5mm, and 2mm. Each tube size maintains the same external width of 6mm.
What filter size is required to be used with Friction Flow?
Due to the larger internal diameter of the Friction Flow tubing, systems can run as low as 16 mesh of suction filters with no pressure filters required. It is recommended that all filter sizes be discussed with FMSA prior to operation or installation.
Do you need covers for check valves?
No covers needed. FMSA’s check valves are designed to work in dusty, dry conditions without jamming or leaking.
Do you get drips out of the tubing?
Friction Flow when paired with FMSA’s manifold system holds liquid to the tip of the tube with no drips or dribbles.
Do you get leaks on the non-drip caps?
FMSA’s non-drips are designed to work under high pressures with the same products in spray applications without leaks. When running with Friction Flow pressure is lower at application.
